CONCRETE COOLING SYSTEM

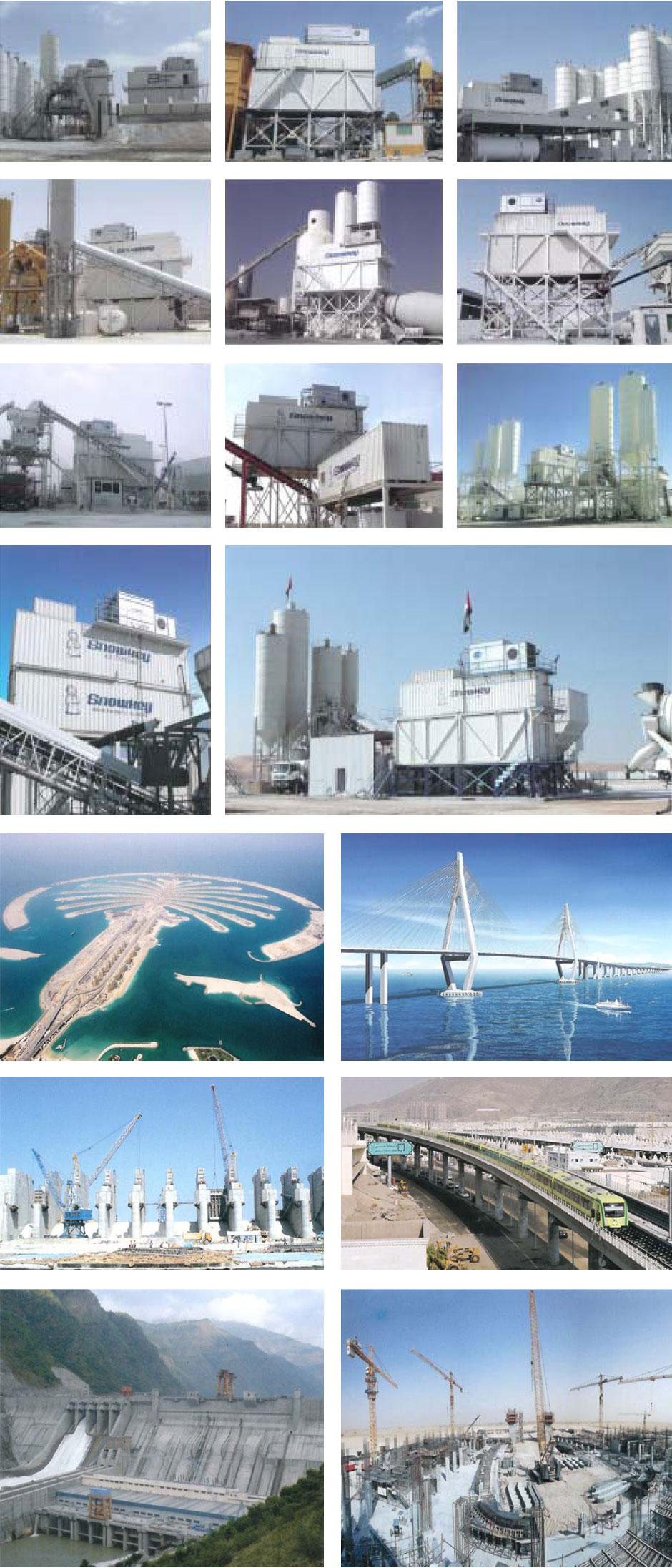

적용 범위

  • Nuclear power plant (원자력 발전소)
  • Bridge and tunnel (다리 및 터널 공사)
  • Hydropower plant (수력 발전소)
  • Large scale building (대형 건물)
  • City light railway (도시 경전철)
  • Others (기타)

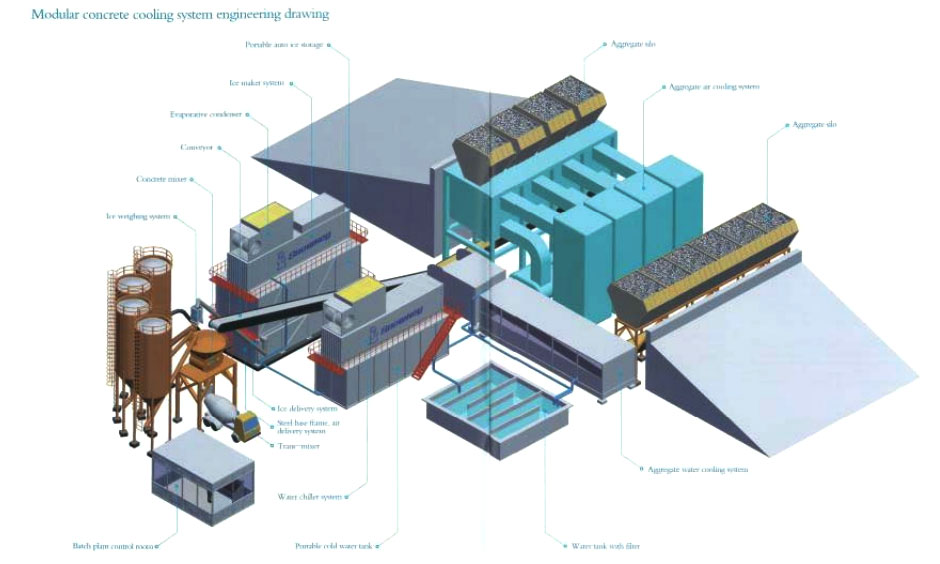

구성 제품

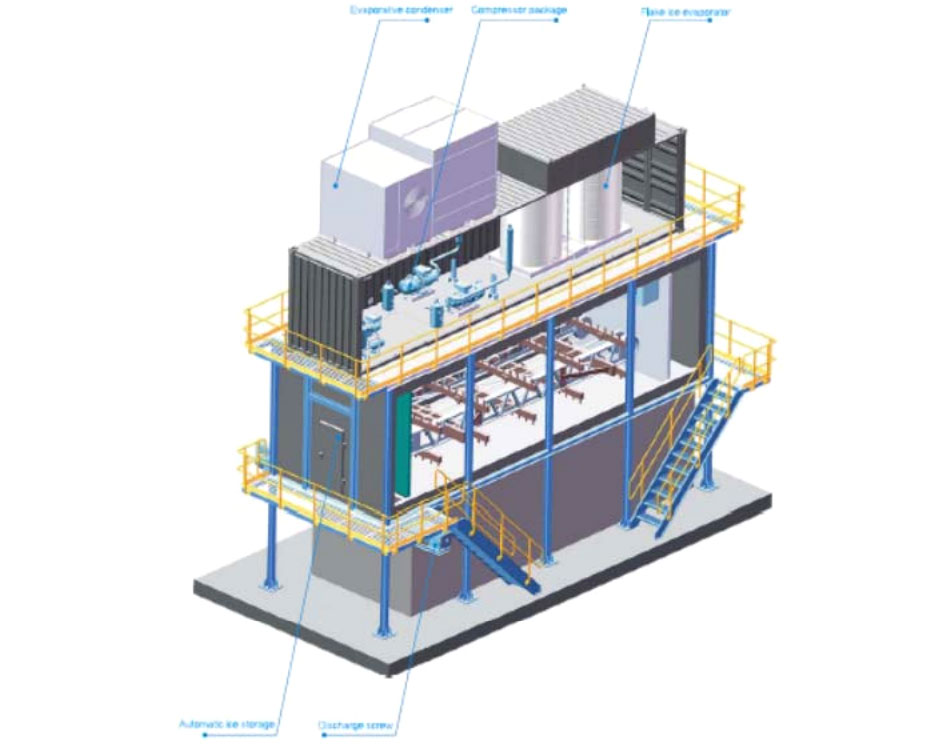

  • Containerized Flake ice machine
  • Compressor unit
  • Water chiller
  • Evaporative condenser
  • Air cooler
  • Automatic ice storage system
  • Screw
  • Ice weighing system
  • Shunt valve
  • Pneumatic ice delivery device
  • Ice buffer bin
  • Cyclone separator

제품 사양

Model

FIP 15

FIP
20

FIP
25

FIP
30

FIP
35

FIP
40

FIP
45

FIP
43

FIP
53

FIP
63

FIP
73

FIP
83

FIP
93

FIP
103

Capacity (Ton/24H)

15

20

25

30

35

40

45

43

53

63

73

83

93

103

Water Supply (Ton/H)

0.631

0.842

1.052

1.263

1.473

1.683

1.894

1.810

2.230

2.651

3.072

3.493

3.914

4.335

Ref. Capacity (kW)

74

98.6

123.3

148

172.6

197.3

222

212.1

261.4

310.8

360.1

409.4

458.8

508.1

Installed Power (kW)

78.54

100.84

118.89

130.14

155.04

185.39

200.39

187.54

216.74

241.24

289.04

347.54

380.54

440.54

Running Power (kW)

69.14

88.88

100.15

119.15

129.67

145.85

161.55

163.24

183.2

222.8

242.24

272.84

306.64

414.44

COP (kW/kW)

1.765

1.697

1.695

1.751

1.752

1.746

1.768

1.705

1.726

1.768

1.780

1.782

1.787

1.637

Water Consumption
(L/H)

294

366

413

504

547

616

690

677

770

953

1039

1177

1324

1702

Container

20

40HQ

40HQ

40HQ

40HQ

40HQ

40HQ

40HQ

40HQ

40HQ

40HQ

40HQ

40HQ

40HQ
